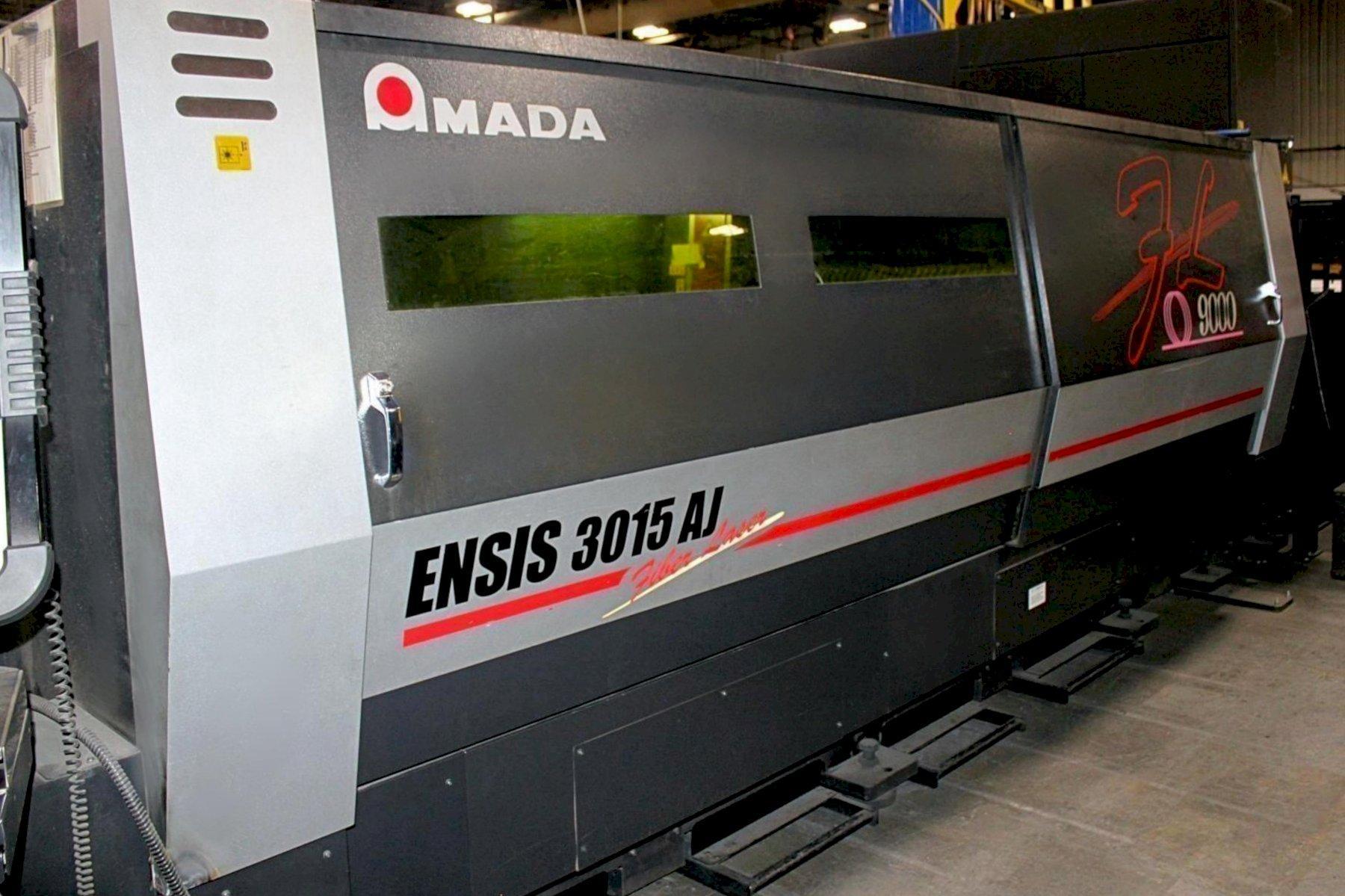

Amada Ensis 3015 AJ 9KW Fiber

Make : AMADA

Model: Ensis 3015 AJ Fiber

Year: 2019

Reference #: 100537

Highlights:
Well maintained with all preventative maintenance performed.

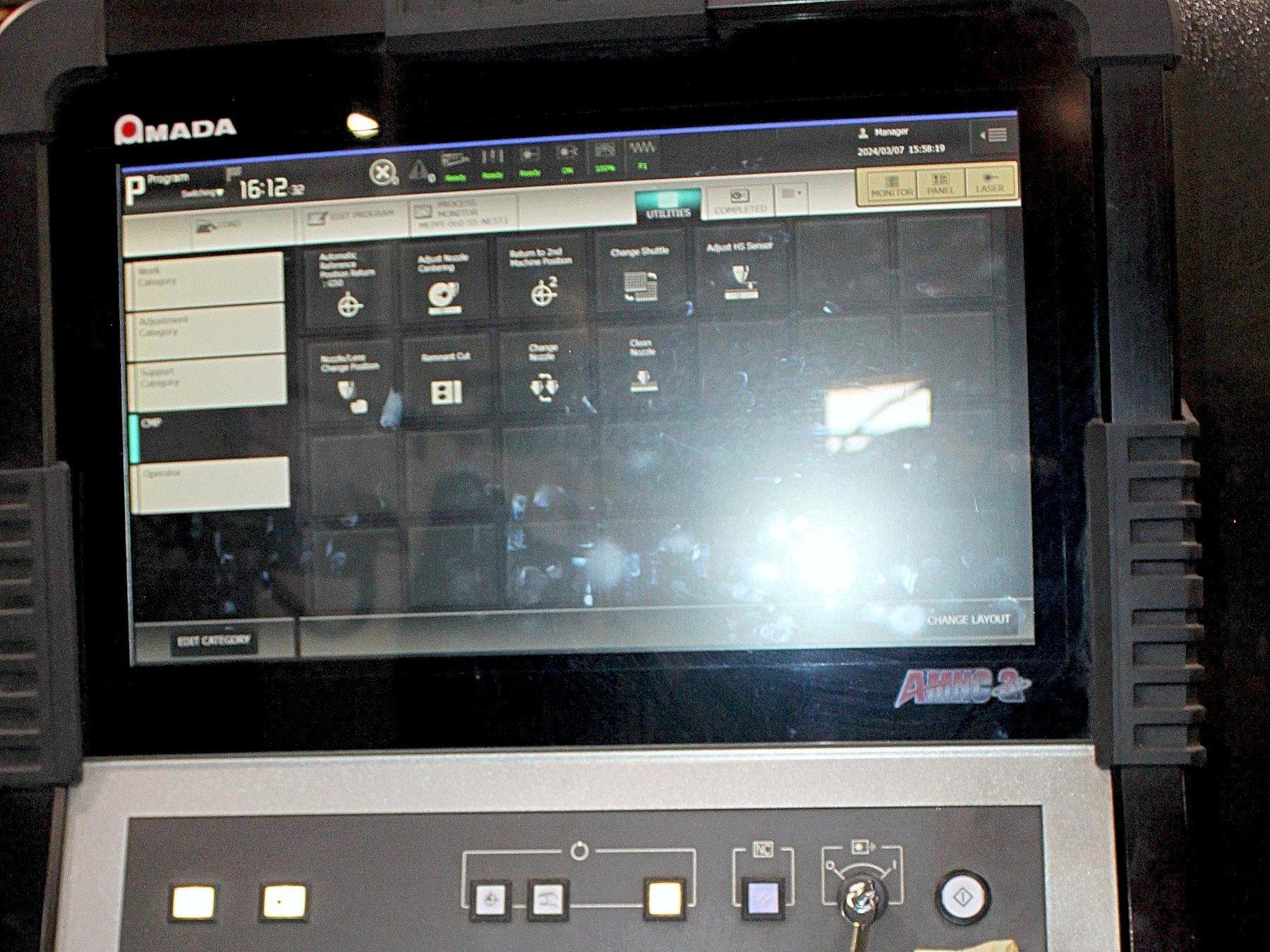

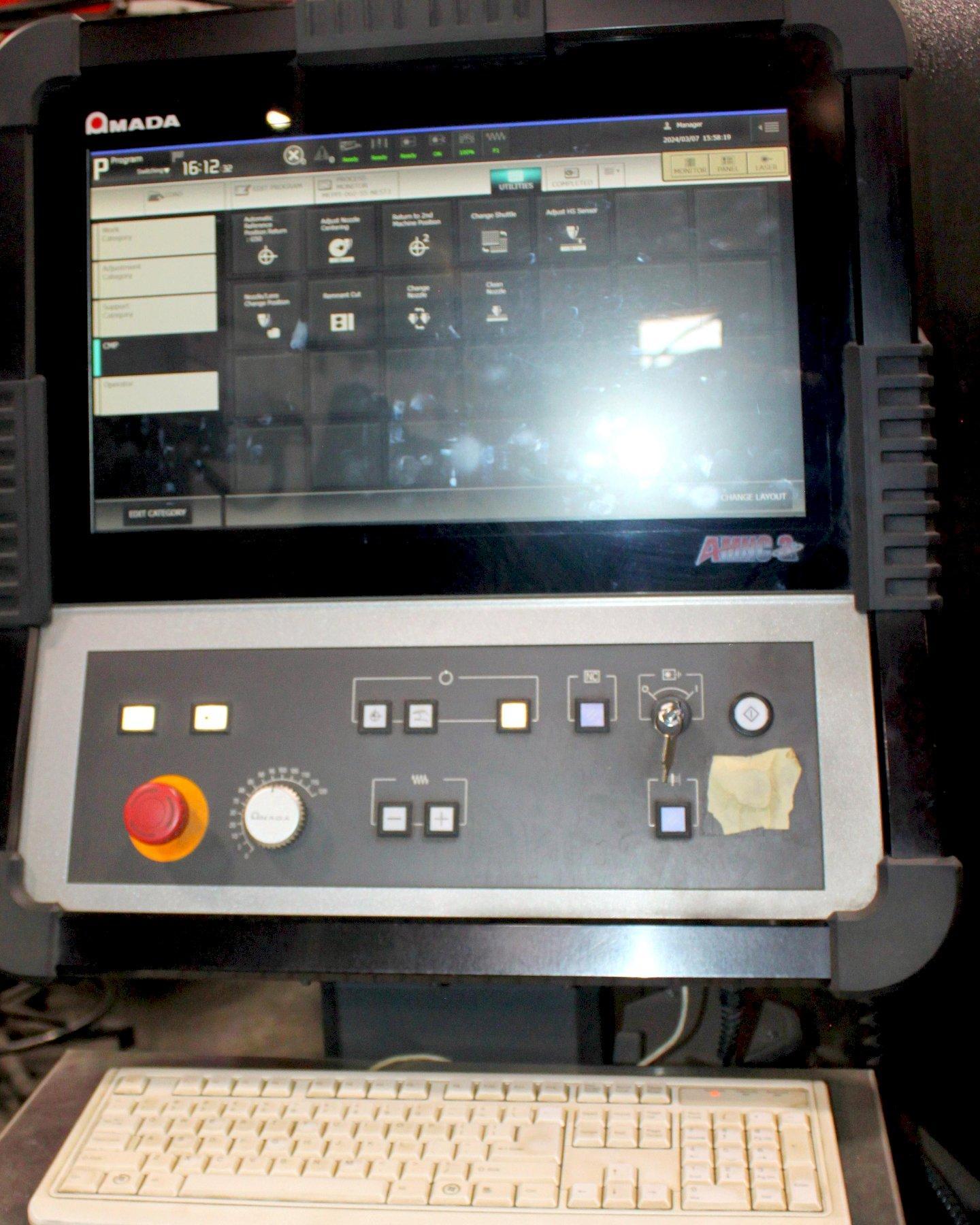

Control: AMNC 3i CNC
Display: Touchscreen Color LCD
Control Function X,Y,Z: Sim. Focus Lens B-Axis
Max. Sheet Size X,Y: 120" x 60"
Max. Axis Travel X,Y,Z: 121" x 61" x 3.93"
Travel Method: X,Y-Axis Stationary Table
Travel Method: Z-Axis Movement Cutting Head
Control Method X,Y,Z: Sim. 3-Axis Control
Drive Motors: Fanuc AC Servo Motors
Max. Axis Pos. Speed X,Y: 4,724"/min. Per Axis
Max. Axis Pos. Speed X,Y: 6,693"/min. 45掳 Vector
Max. Z-Axis Speed: 4,724"/min.
Repeatability: 0.00039"
Max. Material Weight: 2,028 lbs.
Data Storage: Compact Flash Drive
Resonator Type: Fiber
Resonator: LD Excited YB Fiber
Power Output: 9KW (9,000 Watts)
Laser Wavelength: 1.08 m
Power Stability: 卤2%
Beam Divergence: < 3mm-mrad
Pulse Frequency: 1鈥10000Hz
Pulse Duty: 0鈥100%
Max Cut Mild Steel: .98鈥
Max Cut Stainless Steel: .98鈥
Max Cut Aluminum: .98鈥
Max Cut Brass: .70鈥
Max Cut Copper: .46鈥
Assist Gas: 4 Ports w/ NC Pressure Control
Electrical Req.: 200V, 3-Phase, 60Hz, 65kVA Max

Equipped With:

LD Excited YB 9kW Fiber Power Source
AMNC 3i CNC Control

Interlocked Enclosure

NC Assist Gas

B-Axis NC Focus

Integrated Beam Purge

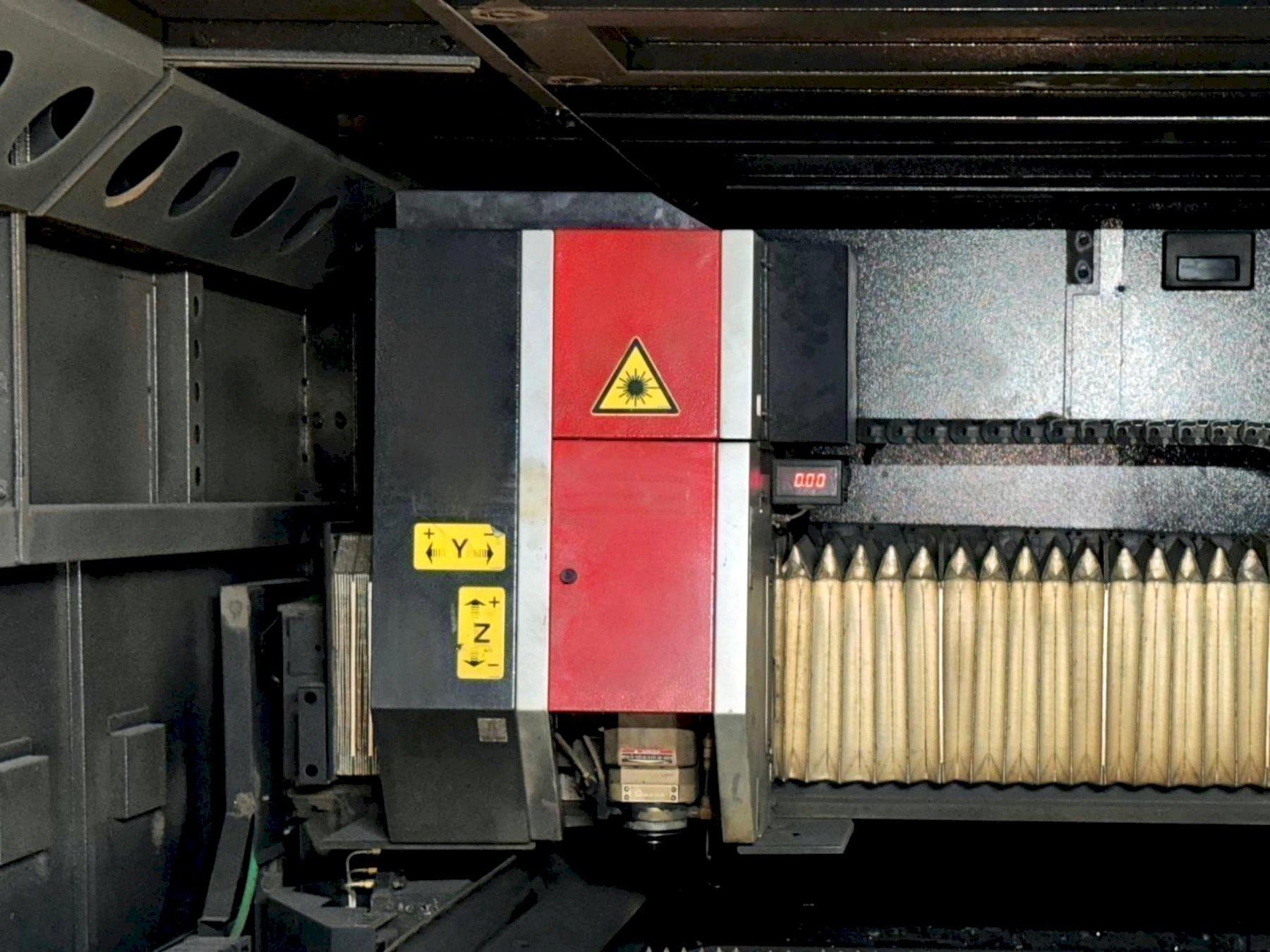

High-Speed Cutting Head

Active Cut™
Clean Cut™

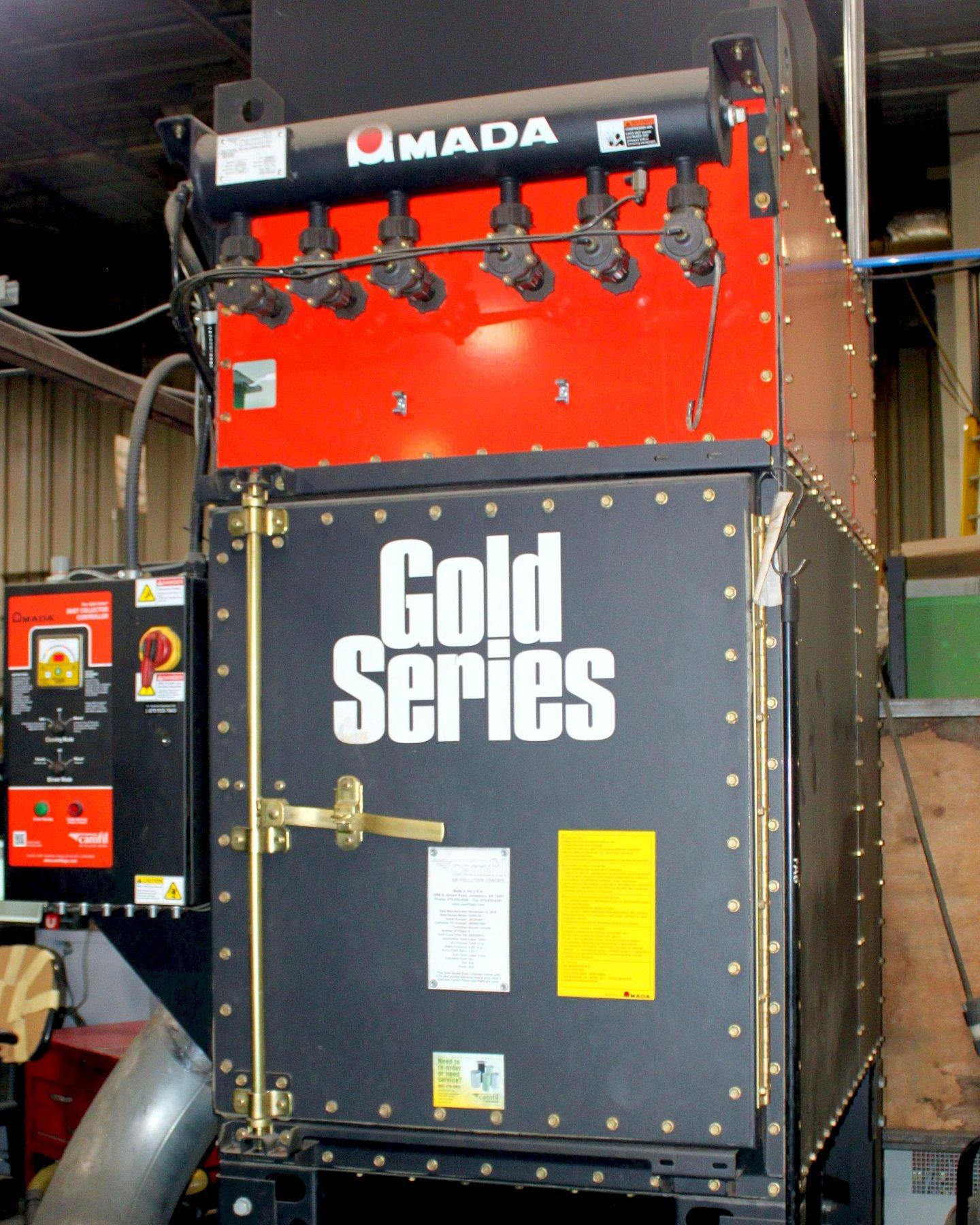

Camfil Dust collector

Orion Chiller Unit
